ALL NEW GivEnergy 3.4kWh High Voltage Battery
Free delivery. Installation included.

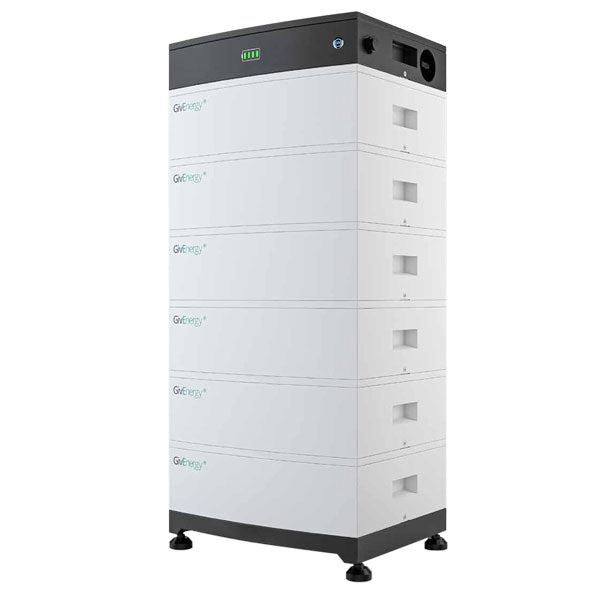

The GivEnergy 3.4kWh High Voltage Battery (GIV-BAT-3.4-HV) is a single 3.4kWh lithium iron phosphate (LFP) module, the building block of GivEnergy's stackable HV battery range. Each 150mm module adds 3.4kWh to a GivEnergy HV stack, from 3 modules (10.2kWh) up to 6 (20.4kWh). It needs a GivEnergy HV BMU and base to work, and is covered by a 12-year unlimited-cycle warranty.
Highlights
3.4kWh per module: Add capacity in simple steps.
Stackable: 3 to 6 modules per stack (10.2–20.4kWh).
100% depth of discharge: Use the full stored capacity.
LFP chemistry: Excellent thermal stability and safety.
Unlimited cycles: No cycle cap across the 12-year warranty.
Slim profile: Just 150mm high, with the same 380 × 480mm footprint as the stack.
Plug-and-play: Stacks straight onto an existing GivEnergy HV stack.
Smart protection: Built-in multi-point BMS monitoring, managed by the stack's BMU.
Technical Specifications
Supplier code: GIV-BAT-3.4-HV
Battery chemistry: Lithium iron phosphate (LiFePO4)
Capacity: 3.4kWh / 51Ah
Nominal voltage: 76.8V DC
Maximum charge/discharge current: 25A
C rating: 0.5C
Depth of discharge: 100%
Ingress protection: IP65
Warranty: 12 years, unlimited cycles
Compatibility: GivEnergy HV battery stacks (requires the GivEnergy HV BMU and base)
Weight: 35.5kg
Dimensions: 150 × 380 × 480mm (H × D × W)
Ideal For
Expanding an existing GivEnergy HV battery stack
Building a new HV stack alongside a BMU and base
Homes and businesses whose energy needs are growing
Why It Stands Out
Grow your storage without replacing what you already have
Fits straight into the GivEnergy HV stack design
The LFP chemistry and 12-year unlimited-cycle warranty give long-term peace of mind
In the Box
1 × GIV-BAT-3.4-HV 3.4kWh high-voltage battery module
Note: a GivEnergy HV BMU and base is needed for the module to operate, and a stack needs at least 3 modules
Installation Details
Priced at 0% VAT, including delivery and installation to your existing GivEnergy system by an approved GivEnergy installer. We can install it anywhere in your property, and your system will be recalibrated as part of the installation. A VAT invoice is supplied once your installation date is confirmed.
