ALL NEW GivEnergy 5.1kWh G3 Battery

ALL NEW GivEnergy 5.1kWh G3 Battery

Free delivery. Installation included.

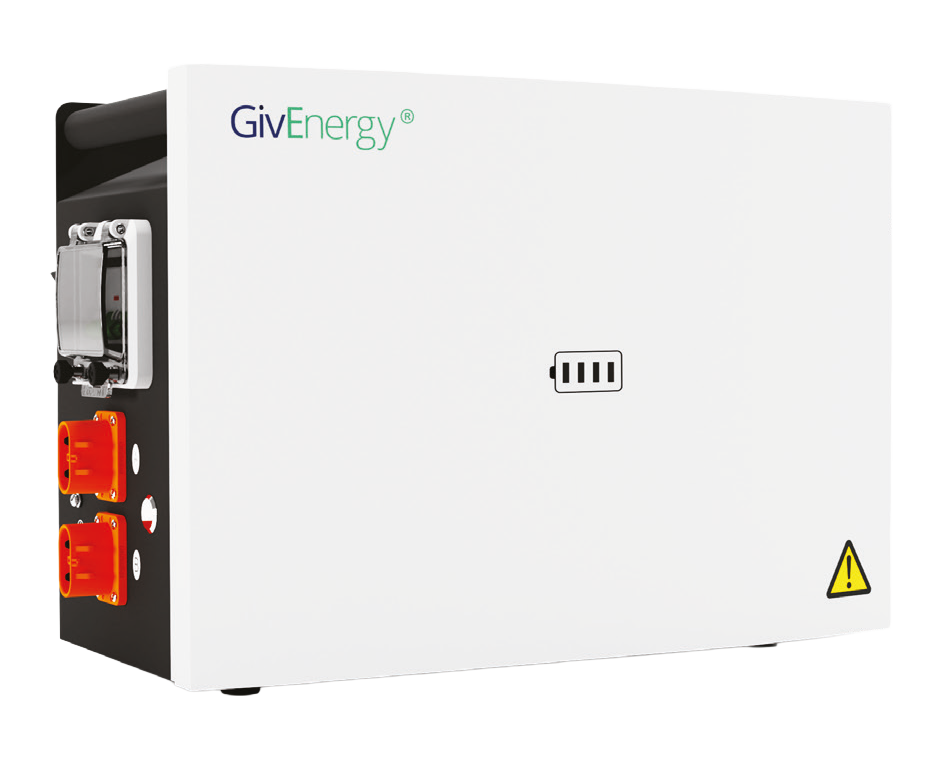

The GivEnergy Giv-Bat 5.12 Gen 3 (GIV-BAT-5.12-G3) is a compact 5.12kWh lithium iron phosphate (LiFePO4) battery for smaller UK homes, or for adding capacity to an existing GivEnergy system. At 48kg and 338mm tall, it's GivEnergy's smallest Gen 3 battery. It offers 100% depth of discharge, a 12-year warranty and an IP65/IK10 casing for wall or floor mounting, and up to five can run in parallel.


Highlights

  • 5.12kWh usable capacity: 100Ah at a nominal 51.2V.

  • Compact and light: 48kg and only 338mm tall.

  • 100% depth of discharge: Use every kWh you store.

  • LiFePO4 chemistry: Prismatic cells with excellent thermal stability.

  • Reliable output: 60A continuous (about 3,072W), 120A peak.

  • Expandable: Up to 5 batteries in parallel.

  • Tough enclosure: IP65 weather and IK10 impact protection.

  • Plug-and-play: Plug-in terminations make installation quick and simple.

  • Smart protection: A pre-installed multi-point BMS monitors every cell.


Technical Specifications

  • Supplier code: GIV-BAT-5.12-G3 (also listed as GIV-BAT-5.1-G3)

  • Battery chemistry: Lithium iron phosphate (LiFePO4), prismatic cell

  • Capacity: 5.12kWh / 100Ah

  • Nominal voltage: 51.2V DC

  • Operating voltage range: 46.4–57.6V DC

  • Maximum charging voltage: 57.6V

  • Continuous charge/discharge current: 60A / 60A

  • Peak current: 120A

  • Depth of discharge: 100%

  • Communication: RS485, USB and CAN (Modbus / CANbus)

  • Charging temperature: 0°C to 50°C

  • Discharging temperature: −10°C to 50°C

  • Storage temperature: −30°C to 60°C

  • Ingress / impact protection: IP65 / IK10

  • Standards: IEC 62619, IEC 62040, CE, UKCA, UN38.3

  • Warranty: 12 years

  • Mounting: Wall or floor

  • Weight: 48kg (±2kg)

  • Dimensions: 338 × 242 × 480mm (H × D × W)


Ideal For

  • Smaller homes and flats

  • Adding capacity to an existing GivEnergy battery system

  • Time-of-use tariffs: charge off-peak and use the power at peak times

  • Installations where space or wall strength is limited


Why It Stands Out

  • GivEnergy's most compact Gen 3 battery

  • Easy to scale: combine up to five for more storage

  • An indoor/outdoor IP65 casing

  • The 12-year warranty gives long-term peace of mind


In the Box

  • 1 × GivEnergy Giv-Bat 5.12 Gen 3 battery

  • 1 × Wall mounting bracket

  • Installation manual

  • Note: Gen 3 battery cables are sold separately


Installation Details

Priced at 0% VAT, including delivery and installation to your existing GivEnergy system by an approved GivEnergy installer. We can install it anywhere in your property, and your system will be recalibrated as part of the installation. A VAT invoice is supplied once your installation date is confirmed.

    £2,000.00Price
