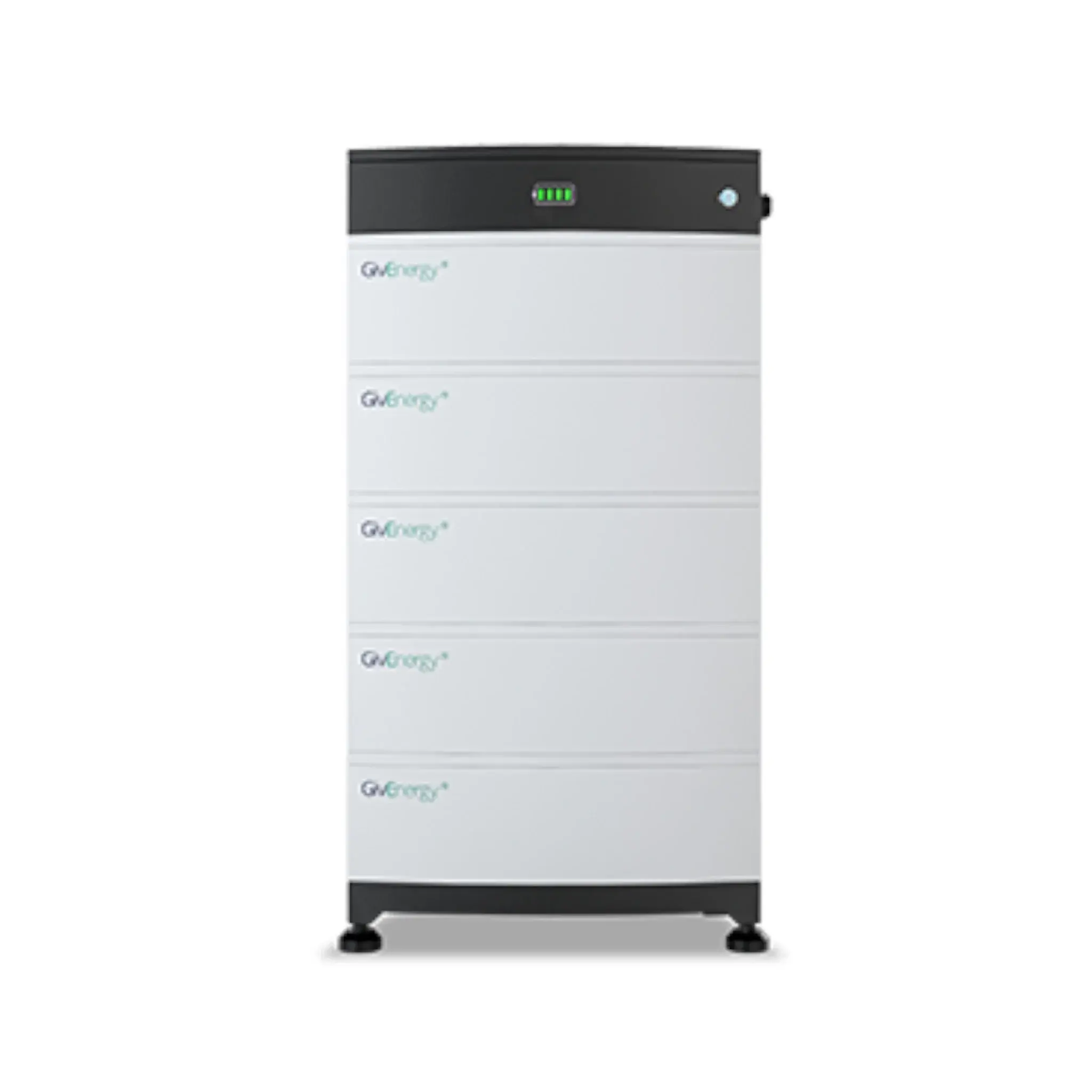

GivEnergy 17.0kWh HV Li-Ion Battery Stack with BMU Cable and Base

GivEnergy 17.0kWh HV Li-Ion Battery Stack with BMU Cable and Base

Free delivery. Installation included.


The GivEnergy 17.0kWh HV Battery Stack (GIV-BAT-17.0-HV) is a modular high-voltage battery made of five 3.4kWh lithium iron phosphate (LFP) modules, plus a BMU and base. It runs at a nominal 384V DC and pairs with GivEnergy's Gen 3 high-voltage hybrid inverters. Built for demanding homes and businesses, it offers 100% depth of discharge, unlimited cycles across a 12-year warranty and a plug-and-play setup.


Highlights

  • 17.0kWh capacity: Five 3.4kWh HV modules.

  • Everything included: The BMU, base and connection cables come in the kit.

  • High-voltage operation: Runs at a nominal 384V DC for better system efficiency.

  • 100% depth of discharge: Use the full stored capacity.

  • Unlimited cycles: No cycle cap for the full 12-year warranty.

  • Strong output: Up to 10.95kW of charge/discharge power.

  • Plug-and-play: The modules stack and connect simply with the GivEnergy HV kit.

  • Smart protection: A multi-point BMS keeps every cell performing safely, monitored over CAN Bus.


Technical Specifications

  • Supplier code: GIV-BAT-17.0-HV

  • Battery chemistry: Lithium iron phosphate (LiFePO4)

  • Capacity: 17.0kWh / 51Ah

  • Nominal voltage: 384V DC

  • Operating voltage range: 200–600V DC

  • Maximum charging voltage: 438V

  • Maximum charge/discharge current: 25A / 25A

  • Maximum charge/discharge power: 10,950W

  • Depth of discharge: 100%

  • C rating: 0.5C

  • Communication: CAN Bus

  • Charging temperature: 0°C to 55°C

  • Discharging temperature: −10°C to 55°C

  • Storage temperature: −30°C to 60°C

  • Ingress protection: IP65

  • Standards: UN 38.3, IEC 61000

  • Warranty: 12 years, unlimited cycles

  • Compatibility: GivEnergy Gen 3 high-voltage hybrid inverters

  • Weight: 190.8kg (complete stack, including BMU and base)

  • Dimensions: 935 × 380 × 480mm (H × D × W)


Ideal For

  • Solar energy storage for homes and businesses

  • Grid-tied and hybrid inverter systems

  • Backup power, peak shaving and time-of-use savings

  • Larger renewable energy installations


Why It Stands Out

  • The modular stack is easy to expand and simple to maintain

  • LFP chemistry provides excellent safety and heat management

  • The high-voltage design cuts down on energy lost in conversion

  • A 12-year warranty with unlimited cycles gives outstanding long-term value


In the Box

  • 5 × GIV-BAT-3.4-HV 3.4kWh high-voltage battery modules

  • 1 × GivEnergy HV kit: BMU (HV box) and base plate

  • 1 × Inverter-to-HV box cable and 1 × plug-to-plug cable with grommet

  • Wall bolts, securing screws and positioning template

  • Installation manual


Installation Details

Priced at 0% VAT, including delivery and installation to your existing GivEnergy system by an approved GivEnergy installer. We can install it anywhere in your property, and your system will be recalibrated as part of the installation. A VAT invoice is supplied once your installation date is confirmed.

    £6,500.00Price
