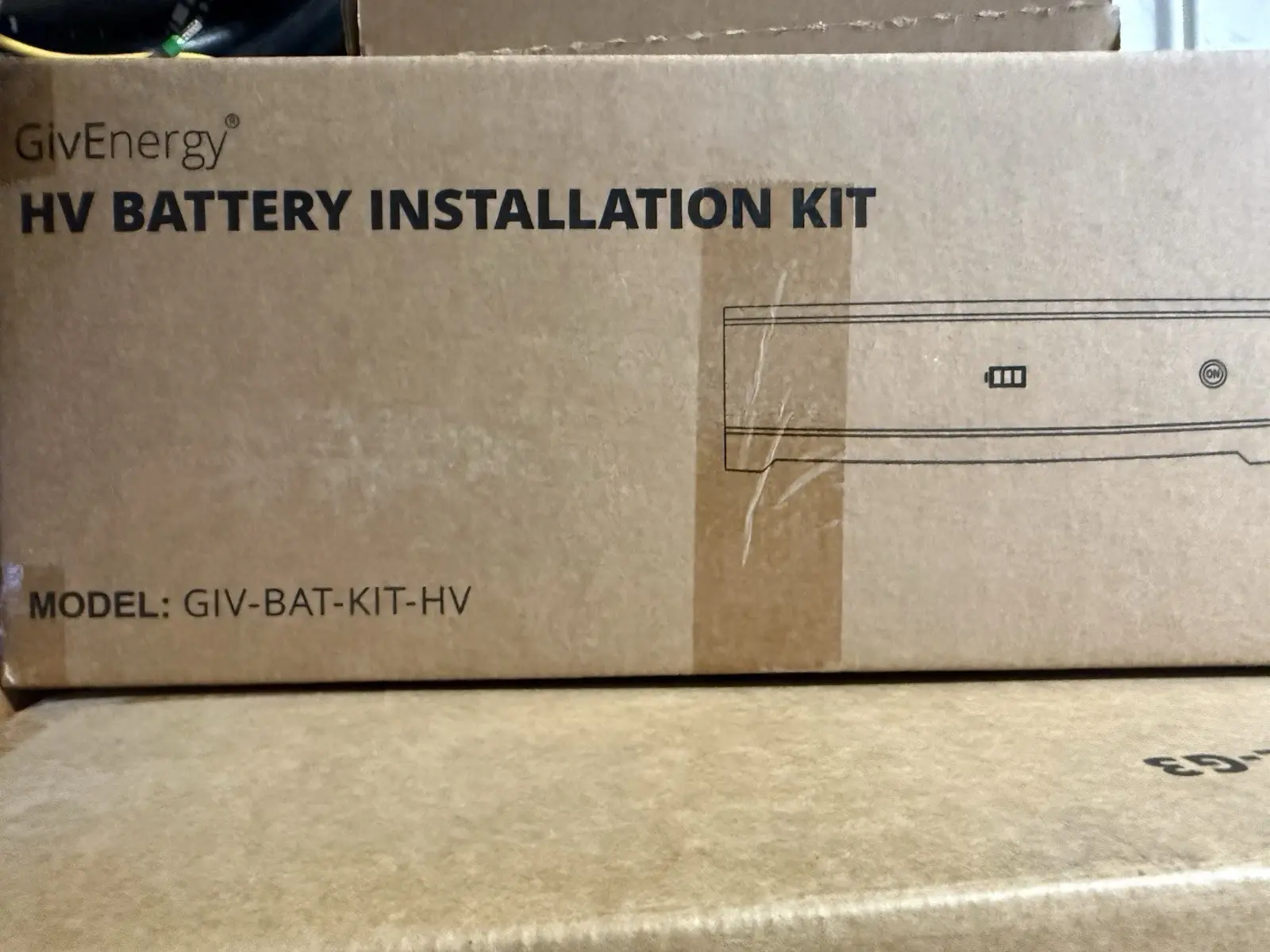

GivEnergy High Voltage second+stack BMS BMU double orange socket style with MCB

GivEnergy High Voltage second+stack BMS BMU double orange socket style with MCB

Free delivery. Installation not included.


The GivEnergy HV Second-Stack BMS Kit (GIV-BAT-KIT-HV) is the battery management kit you need to add a second (or further) stack of GivEnergy high-voltage batteries to an existing GivEnergy HV system. It has two orange socket connectors, and comes complete with an MCB breaker, a plug-to-plug cable, a base and feet. Each additional stack needs its own BMS kit plus 3 to 6 GivEnergy 3.4kWh HV battery modules.


Highlights

  • Expand your system: Adds a second or further HV battery stack to an existing GivEnergy HV system.

  • Complete kit: Comes with the MCB breaker, plug-to-plug cable, base and feet.

  • Double orange socket design: Two orange socket connectors for the stack connections.

  • Built-in protection: The included MCB breaker protects the new stack's circuit.

  • Plug-and-play: The plug-to-plug cable makes connection quick and simple.

  • Smart protection: The BMS manages and monitors every module in the new stack.

  • Remote support: Remote installation support is available on request.


Technical Specifications

  • Supplier code: GIV-BAT-KIT-HV

  • Product: GivEnergy HV BMS kit for additional battery stacks

  • Connectors: 2 × orange socket connectors

  • Supported stack size: 3 to 6 × GIV-BAT-3.4-HV modules (10.2–20.4kWh) per stack

  • Maximum stacks: Up to 4 stacks per inverter (81.6kWh)

  • Communication: CAN Bus

  • Compatibility: GivEnergy high-voltage (HV) battery systems

  • Included protection: MCB breaker

  • Weight: 13.3kg


Ideal For

  • Adding a second stack to an existing GivEnergy HV battery system

  • Homes and businesses that need more storage than one stack provides

  • Installers expanding a customer's GivEnergy HV system


Why It Stands Out

  • Everything needed for the stack in one kit, including the MCB, cable, base and feet

  • An official GivEnergy component for HV systems

  • Remote installation support is available, and we also stock GivEnergy 3.4kWh HV batteries to build the stack


In the Box

  • 1 × GivEnergy HV BMS unit (double orange socket)

  • 1 × MCB breaker

  • 1 × Plug-to-plug cable

  • 1 × Base

  • Feet

    £700.00Price
