ALL NEW GEN 3 GivEnergy 9.5kWh LiFePO4 Battery

ALL NEW GEN 3 GivEnergy 9.5kWh LiFePO4 Battery

Free delivery. Installation included.

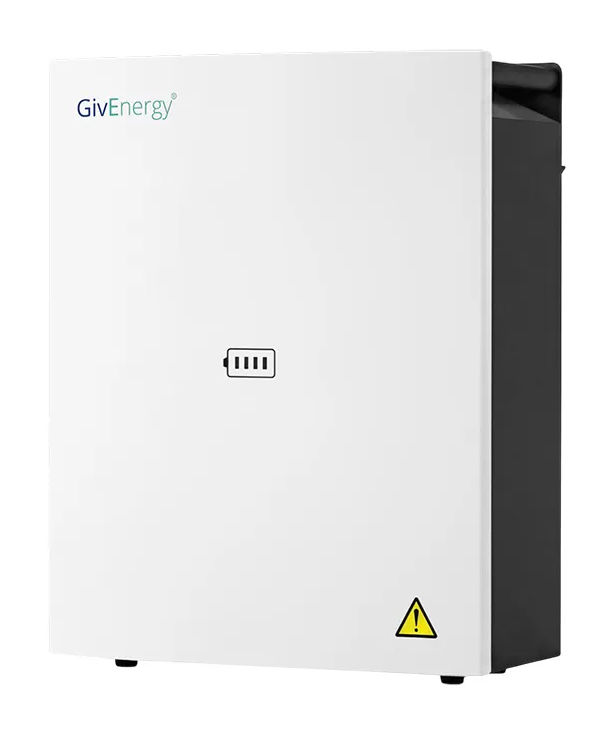

The GivEnergy Giv-Bat 9.5 Gen 3 (GIV-BAT-9.5-G3) is a 9.5kWh lithium iron phosphate (LiFePO4) home battery for medium to large UK properties. It delivers the full 9.5kWh with 100% depth of discharge, and GivEnergy covers it for 12 years with unlimited cycles. The 85kg IP65 unit mounts on a wall or the floor, indoors or outdoors, and up to five can run in parallel.

Highlights

  • 9.5kWh usable capacity: 186Ah at a nominal 51.2V.

  • 100% depth of discharge: Use every kWh you store.

  • LiFePO4 chemistry: Prismatic cells with excellent thermal stability.

  • Unlimited cycles: No cycle cap across the 12-year warranty.

  • Strong output: Up to 6,144W continuous and 7,080W surge.

  • Expandable: Up to 5 batteries in parallel.

  • Tough enclosure: IP65 weather and IK10 impact protection.

  • Plug-and-play: Simple plug-in connections to GivEnergy Gen 3 inverters and batteries.

  • Smart protection: A multi-point BMS monitors every cell, with remote updates through the GivEnergy app.

Technical Specifications

  • Supplier code: GIV-BAT-9.5-G3

  • Battery chemistry: Lithium iron phosphate (LiFePO4), prismatic cell

  • Capacity: 9.5kWh / 186Ah

  • Nominal voltage: 51.2V DC

  • Operating voltage range: 44.8–57.6V DC

  • Maximum charging voltage: 59V

  • Continuous charge/discharge current: up to 120A

  • Continuous discharge power: 6,144W

  • Surge discharge (15 seconds): 7,080W

  • Depth of discharge: 100%

  • Communication: RS485, USB and CAN (Modbus / CANbus)

  • Charging temperature: 0°C to 50°C

  • Discharging temperature: −10°C to 50°C

  • Storage temperature: −20°C to 50°C

  • Ingress / impact protection: IP65 / IK10

  • Standards: IEC 62619, IEC 62040, CE, UKCA, UN38.3

  • Warranty: 12 years, unlimited cycles

  • Mounting: Wall or floor

  • Weight: 85kg (±2kg)

  • Dimensions: 576 × 225 × 480mm (H × D × W)

Ideal For

  • Medium to large homes storing solar energy

  • Time-of-use tariffs: charge off-peak and use the power at peak times

  • Backup power during outages (with a compatible inverter set-up)

  • Adding storage to an existing solar PV system

Why It Stands Out

  • A big usable capacity at a competitive cost per kWh

  • The 12-year unlimited-cycle warranty means you can use it daily without worrying

  • The indoor/outdoor IP65 casing gives you flexibility in where it goes

  • Scales up to 5 batteries as your needs grow

In the Box

  • 1 × GivEnergy Giv-Bat 9.5 Gen 3 battery

  • 1 × Wall mounting bracket

  • Installation manual

  • Note: Gen 3 battery cables are sold separately

Installation Details

Priced at 0% VAT, including delivery and installation to your existing GivEnergy system by an approved GivEnergy installer. We can install it anywhere in your property, and your system will be recalibrated as part of the installation. A VAT invoice is supplied once your installation date is confirmed.

    £3,450.00Price
